foray::scene::ncomp::FreeCameraController Class Reference

A simple camera controller for free flight. More...

#include <foray_freecameracontroller.hpp>

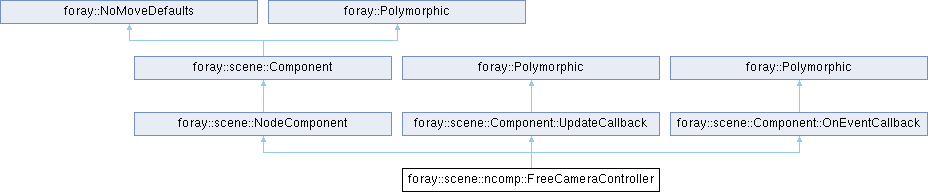

Inheritance diagram for foray::scene::ncomp::FreeCameraController:

Classes
struct	InputStates

Public Member Functions
virtual void	OnEvent (const osi::Event *event) override
virtual void	Update (SceneUpdateInfo &) override
virtual int32_t	GetOrder () const override
Public Member Functions inherited from foray::scene::NodeComponent
Node *	GetNode ()
	Node this component is attached to. Casts mRegistry to Node.
virtual Scene *	GetScene () override
	Scene this component is a part of. Casts mRegistry->mCallbackDispatcher to Scene.
virtual Registry *	GetGlobals () override
	Global component registry. Casts mRegistry->mCallbackDispatcher to Scene and returns Scene->GetGlobals()
virtual core::Context *	GetContext () override
	Vulkan Context. Casts mRegistry->mCallbackDispatcher to Scene and returns Scene->GetContext()
Public Member Functions inherited from foray::scene::Component
virtual	~Component ()
	Destructor. Provide virtual constructors in inheriting classes, to make sure they get finalized correctly.
Public Member Functions inherited from foray::NoMoveDefaults
	NoMoveDefaults ()=default
	NoMoveDefaults (const NoMoveDefaults &other)=delete
	NoMoveDefaults (NoMoveDefaults &&other)=default
NoMoveDefaults &	operator= (const NoMoveDefaults &other)=delete
Public Member Functions inherited from foray::scene::Component::UpdateCallback
virtual void	Update (TArg updateInfo)=0
	Invoked first each frame. Use for changes to the node hierarchy and transforms.
void	Invoke (TArg updateInfo)
Public Member Functions inherited from foray::scene::Component::OnEventCallback
virtual void	OnEvent (TArg event)=0
	Invoked with every event received by the application.
void	Invoke (TArg event)

Protected Member Functions
virtual void	ProcessMouseMovedEvent (const osi::EventInputMouseMoved *event)
Protected Member Functions inherited from foray::Polymorphic
virtual void	__makeMePolymorphic ()

Protected Attributes
struct foray::scene::ncomp::FreeCameraController::InputStates	mInputStates = {}
int	mSpeedExponent = 0
float	mPitch = 0
float	mYaw = 0
bool	mUseMouse = false
bool	mInvertYAxis = false
bool	mInvertAll = false
std::unordered_map< osi::EButton, bool & >	mMapping
Protected Attributes inherited from foray::scene::Component
Registry *	mRegistry = nullptr
std::string	mName = ""

Static Protected Attributes
static constexpr float	KEYBOARD_ROTATION_SENSIBILITY = 9000.f
static constexpr float	MOUSE_ROTATION_SENSIBILITY = .05f

Additional Inherited Members
Public Types inherited from foray::scene::Component::UpdateCallback
using	TArg = SceneUpdateInfo &
Public Types inherited from foray::scene::Component::OnEventCallback
using	TArg = const osi::Event *
Public Attributes inherited from foray::scene::Component
friend	Registry
Static Public Attributes inherited from foray::scene::Component::UpdateCallback
static const bool	ORDERED_EXECUTION = true
static const int32_t	ORDER_TRANSFORM = 100
static const int32_t	ORDER_DEVICEUPLOAD = 200
Static Public Attributes inherited from foray::scene::Component::OnEventCallback
static const bool	ORDERED_EXECUTION = false

Detailed Description

A simple camera controller for free flight.

Controls:

• W/S Forwards/Backwards
• A/D Strafe Left/Right
• LCtrl/LShift Strafe Up/Down
• ScrollWheel/Numpad+/- Increase / decrease movement speed (exponentially)
• Arrow Keys Pitch & Yaw
• Space Toggle mouse capture for pitch & yaw

Member Function Documentation

GetOrder()

virtual int32_t foray::scene::ncomp::FreeCameraController::GetOrder ( ) const

inlineoverridevirtual

Reimplemented from foray::scene::Component::UpdateCallback.

OnEvent()

virtual void foray::scene::ncomp::FreeCameraController::OnEvent ( const osi::Event *  event )

overridevirtual

ProcessMouseMovedEvent()

virtual void foray::scene::ncomp::FreeCameraController::ProcessMouseMovedEvent ( const osi::EventInputMouseMoved *  event )

protectedvirtual

Update()

virtual void foray::scene::ncomp::FreeCameraController::Update ( SceneUpdateInfo &  )

overridevirtual

Member Data Documentation

KEYBOARD_ROTATION_SENSIBILITY

constexpr float foray::scene::ncomp::FreeCameraController::KEYBOARD_ROTATION_SENSIBILITY = 9000.f

inlinestaticconstexprprotected

mInputStates

struct foray::scene::ncomp::FreeCameraController::InputStates foray::scene::ncomp::FreeCameraController::mInputStates = {}

protected

mInvertAll

bool foray::scene::ncomp::FreeCameraController::mInvertAll = false

protected

mInvertYAxis

bool foray::scene::ncomp::FreeCameraController::mInvertYAxis = false

protected

mMapping

std::unordered_map<osi::EButton, bool&> foray::scene::ncomp::FreeCameraController::mMapping

protected

Initial value:

= {{osi::EButton::Keyboard_W, mInputStates.Forward},       {osi::EButton::Keyboard_S, mInputStates.Backward},
                                                            {osi::EButton::Keyboard_LShift, mInputStates.StrafeUp}, {osi::EButton::Keyboard_LCtrl, mInputStates.StrafeDown},
                                                            {osi::EButton::Keyboard_A, mInputStates.StrafeLeft},    {osi::EButton::Keyboard_D, mInputStates.StrafeRight},
                                                            {osi::EButton::Keyboard_Up, mInputStates.PitchUp},      {osi::EButton::Keyboard_Down, mInputStates.PitchDown},
                                                            {osi::EButton::Keyboard_Left, mInputStates.YawLeft},    {osi::EButton::Keyboard_Right, mInputStates.YawRight}}

MOUSE_ROTATION_SENSIBILITY

constexpr float foray::scene::ncomp::FreeCameraController::MOUSE_ROTATION_SENSIBILITY = .05f

inlinestaticconstexprprotected

mPitch

float foray::scene::ncomp::FreeCameraController::mPitch = 0

protected

mSpeedExponent

int foray::scene::ncomp::FreeCameraController::mSpeedExponent = 0

protected

mUseMouse

bool foray::scene::ncomp::FreeCameraController::mUseMouse = false

protected

mYaw

float foray::scene::ncomp::FreeCameraController::mYaw = 0

protected

---

The documentation for this class was generated from the following file:

• src/scene/components/foray_freecameracontroller.hpp
